477538 Wrapped Bronze Bearing Flange CuSn8P Bushings oil grease Lubrication Pocket

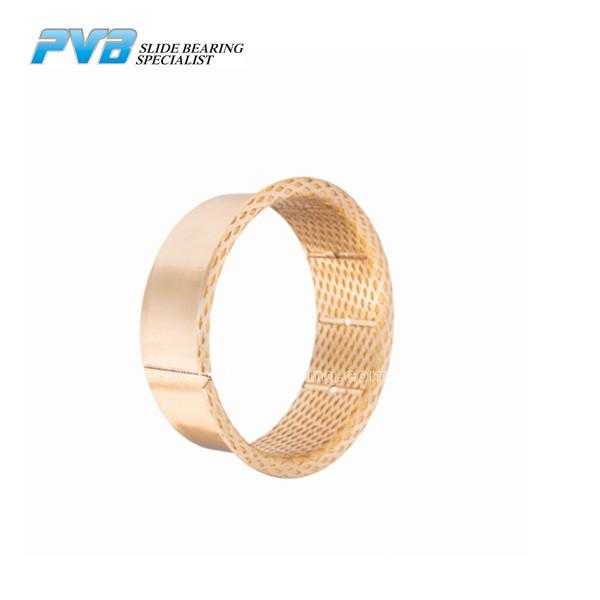

PVB090G Bronze Wrapped Bearing With Lubrication Pockets Filled


PVB090G bronze rolled bearing is made of specially formulated high-density bronze alloy with oil pockets and graphite. This type of bronze sliding bearing also called FB090G bronze graphite bearing,bronze wrapped plain bearings.


Material Structure



Material: CuSn8P0.3+Graphite (DIN ISO 4382-2:1991)


TypeCu%Sn%P%
PVB090 Bronze Bushing91.38.50.2

Materail chemical composition refer to the standard of DIN17662 ISO 4382-2: 1991; CW453K
The actual composition proportion is allowed to up or down in certain range based on standard



Characteristics



  • Surface can be incorporated with spherical of diamond shaped indentations with graphite filled. High performance under oil or without oil situation
  • High load capacity and long life.
  • Cheap than traditional bronze bush, cost saving.

Availability



Standard straight bronze bearing,brone hrust washers, strip

Special designs bronze bushes are produced based on your requirement.

CuSn6.5P0. 1 is also available.


Application



PVB090G bronze wrapped bushing is widely used in automotive transmission


Tolerance Details



  • Housing ØH7

  • Bushing inner-Ø after mountingH9

  • Shaft tolerancef7


Mounting Suggestion



  • Housing: Mounting bevel min. 1.5 mm x 15-45°

  • Shaft Material: Steel, hardened or untempered, surface roughness ≤ Rz 4-6

  • Shaft: Mounting bevel 5 mm x 15°, edges rounded

  • The application of an adequate force fitting mandrel is advisable. Grease lubrication of the outer surface may be necessary when mounting.

  • Stick-in: Adhesive should not contact the sliding surface
